[LSX] How to Setup and use a Xenon 1902 Barcode Scanner to Sell Items Using the LSX POS iPad app

Considerations

Since this scanner can only function in a Basic HID mode, it means that you must always tap in the field/box before you scan an item and always tap the item that you wish to add to the sale after it appears in the search results.

Although you can scan with this in the LSX POS app, it does not work efficiently and iPOS DOES NOT recommend its use.

This article will walk you through the configuration setup for the Xenon 1902 barcode scanner with the LSX POS iPad app and how it works to scan items that are being sold.

Configuring a Carriage Return in the Scanner

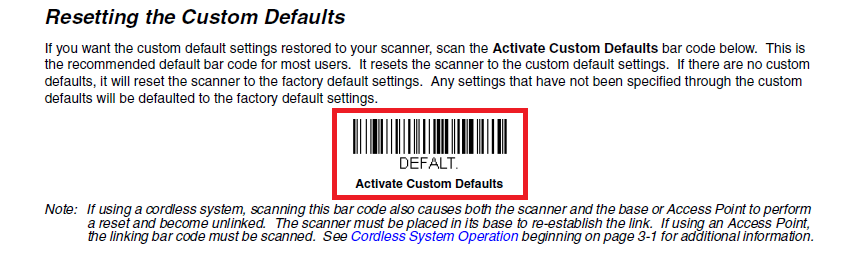

1. Scan the "Activate Custom Defaults" programming barcode below.

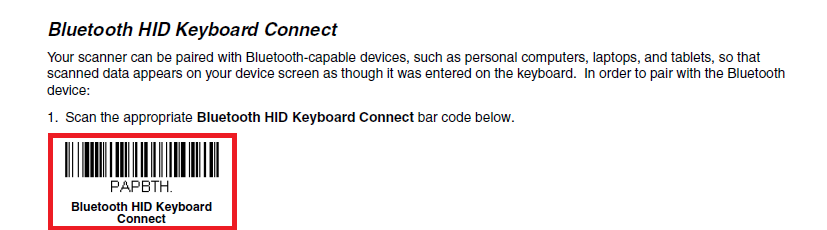

2. Scan the "Bluetooth HID Keyboard Connect" programming barcode below.

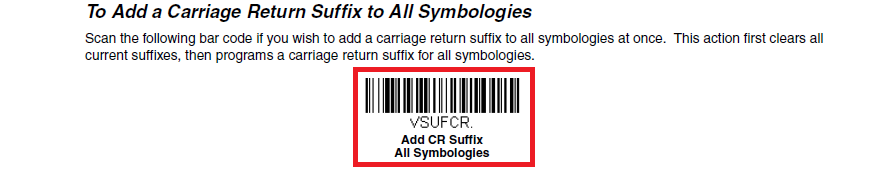

3. Scan the "Add CR Suffix All Symbologies" barcode below.

4. Pair the scanner with the iPad.
5. Open the LSX POS iPad app.
6. Select a register.

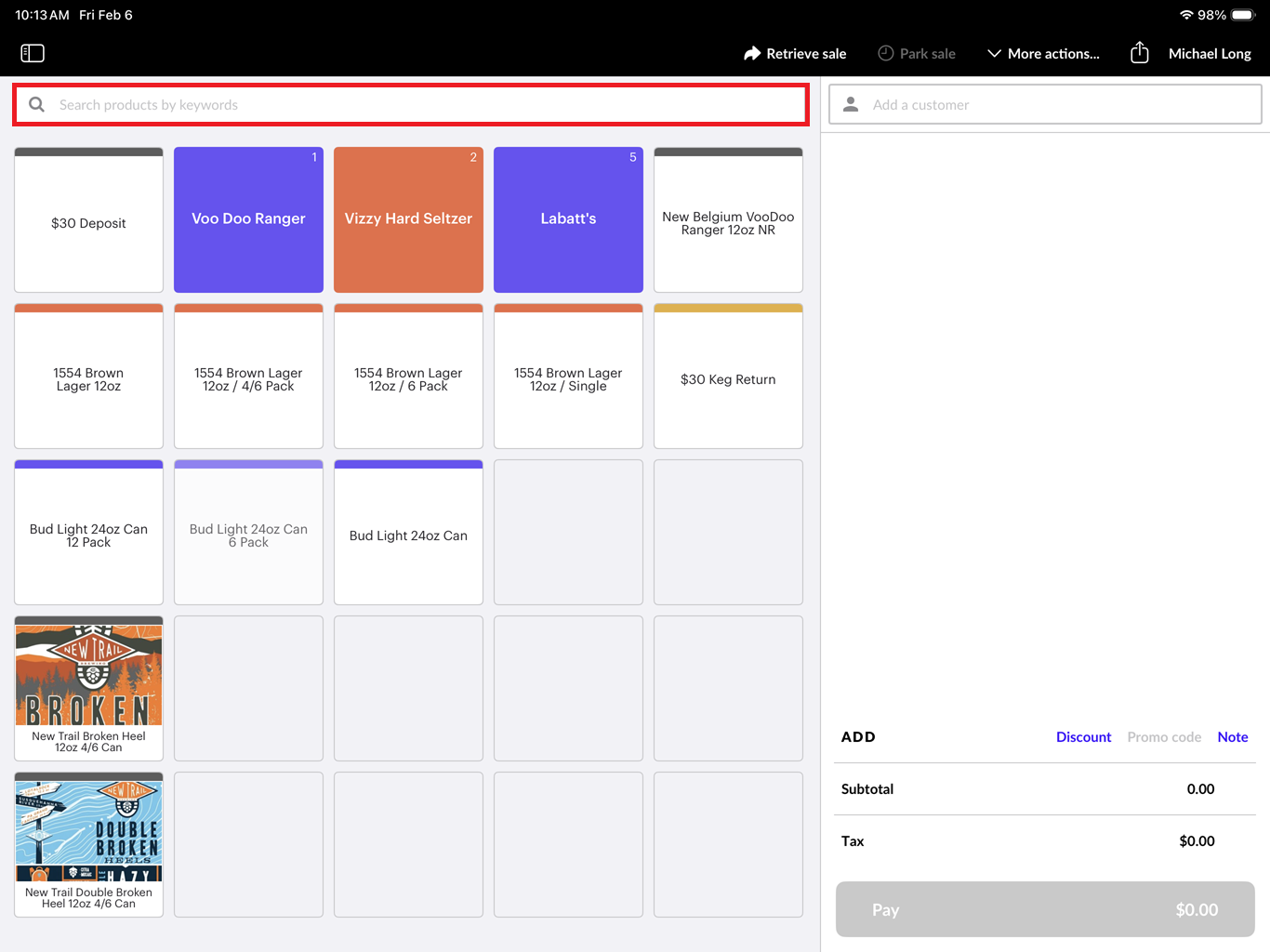

7. Go into the "Sell" screen.

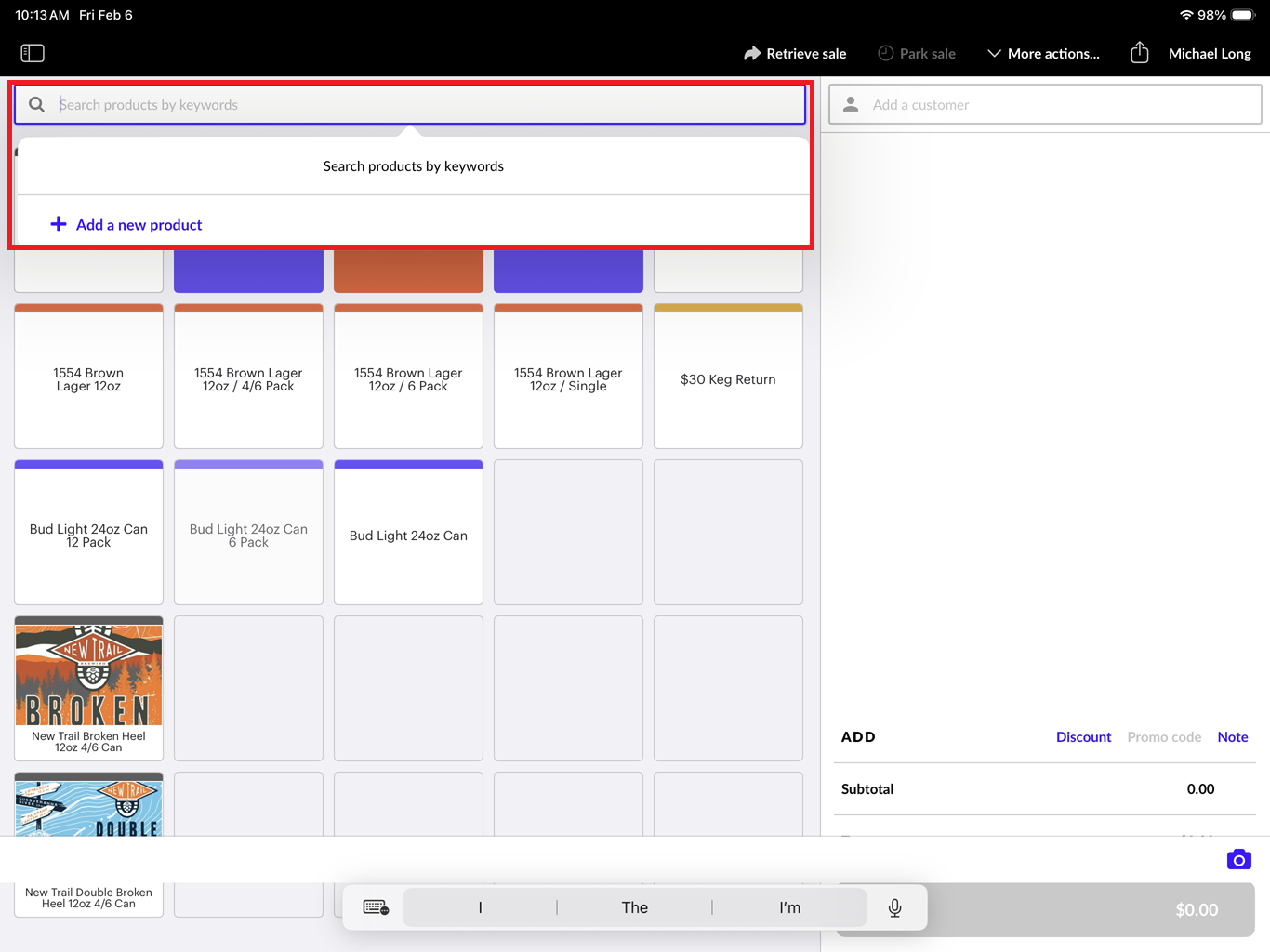

8. Tap the search bar to put the cursor in it.

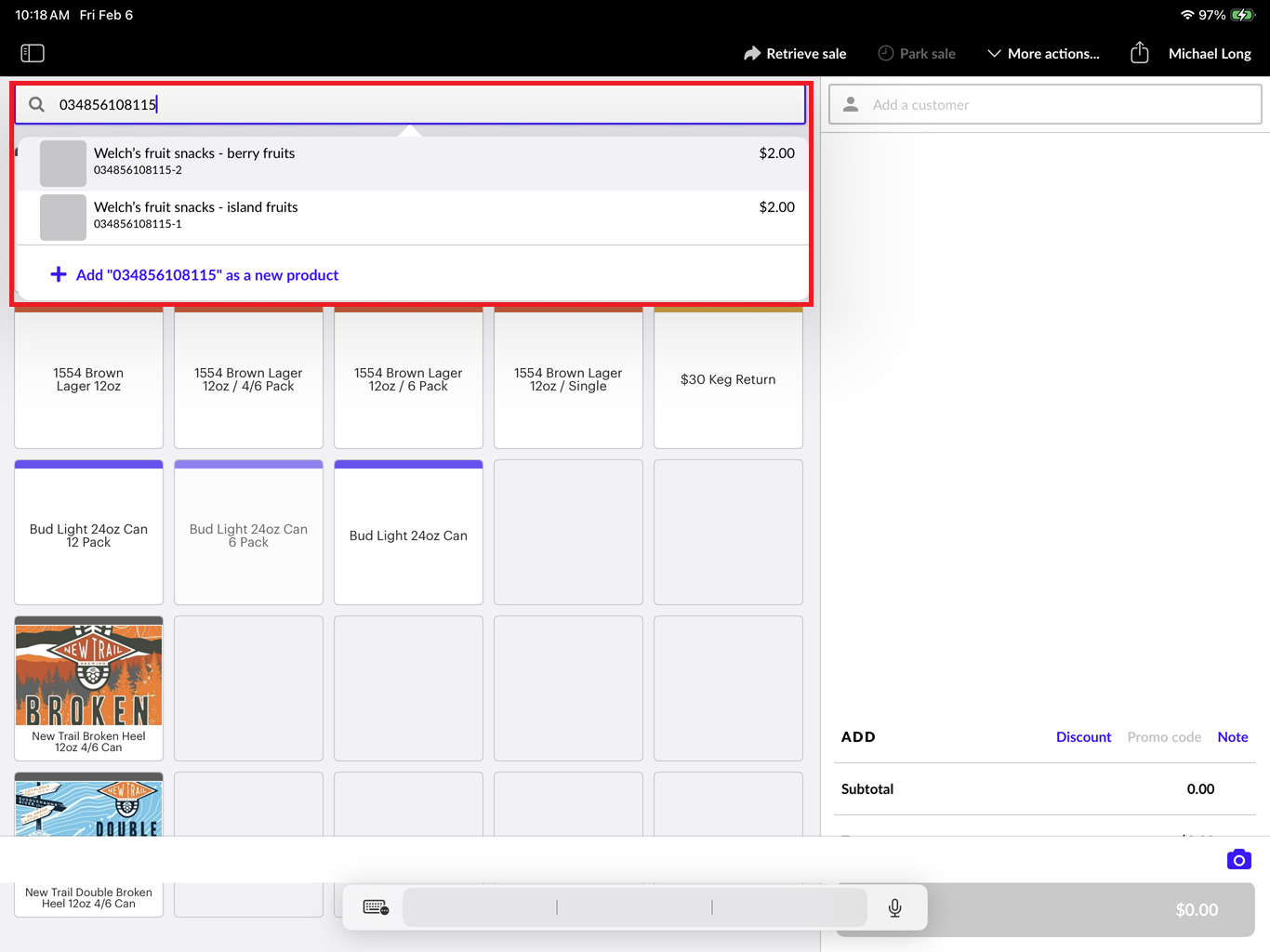

9. Scan the UPC for the item you wish to add to the sale and all results that include that UPC will appear.  In this example, there are two items that include the UPC that was scanned.

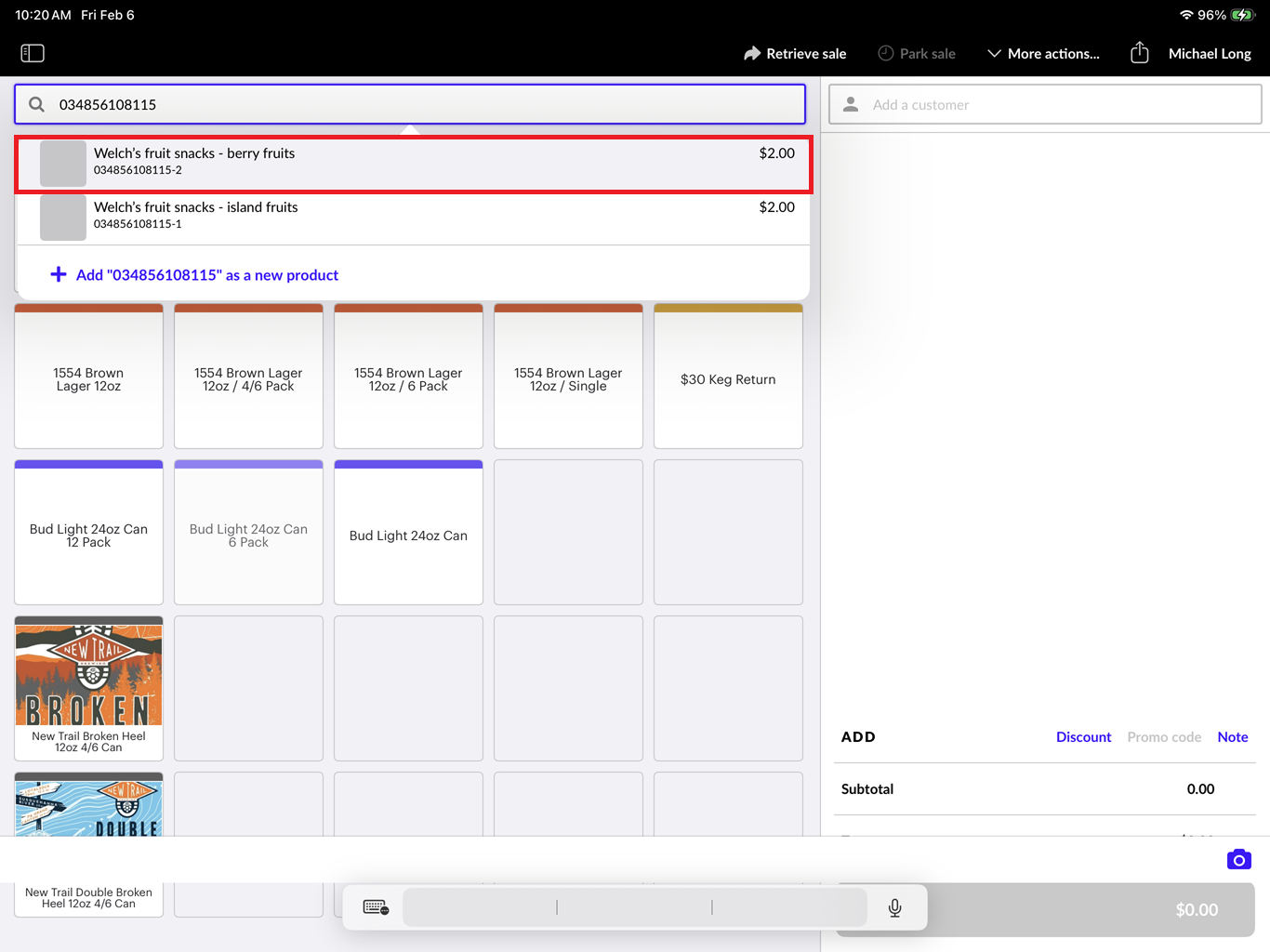

10. You must manually tap the item that you want to add to the sale.  In this example, there are two items that include the UPC that was scanned.

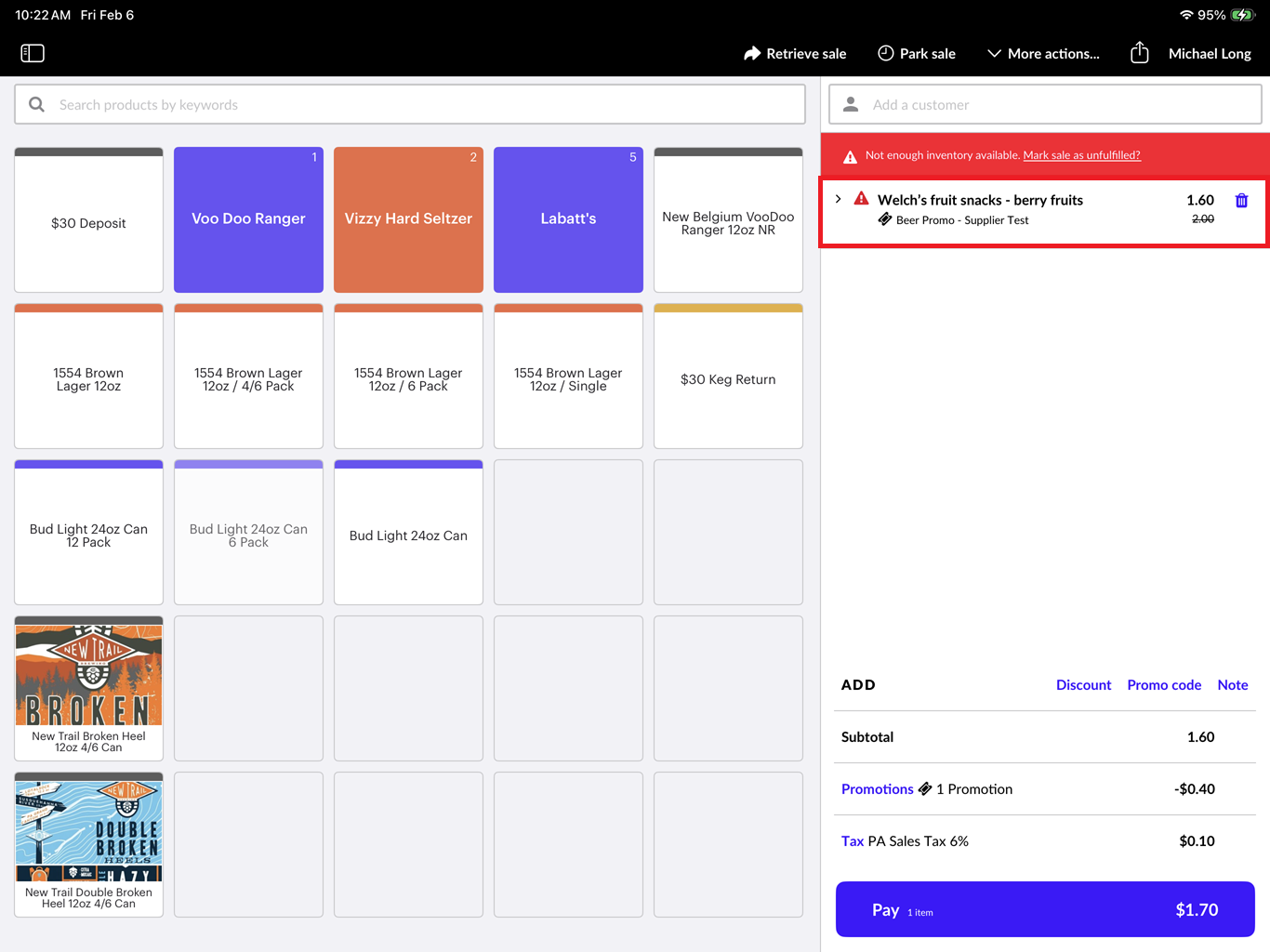

11. The item will be added to the sale as shown below.

12. Repeat steps #8 through #11 to continue adding items to the sale as needed.
