[LSR] How to Change the DNS Servers on a Wise POS E Pin Pad Terminal That is Connected to a Wireless Network

Updated

This article will walk you through changing the DNS servers on a Wise POS E pin pad terminal that is connected to a wireless network.

You may need to make a change to the DNS servers that the Wise POS E pin pad terminal uses if there are communication issues between Lightspeed Retail or X Series and the terminal.

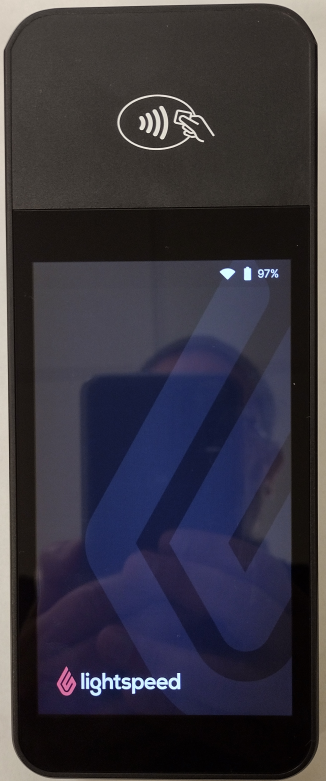

  1. Power on the Wise POS E pin pad terminal and wait until it displays the idle screen shown below.

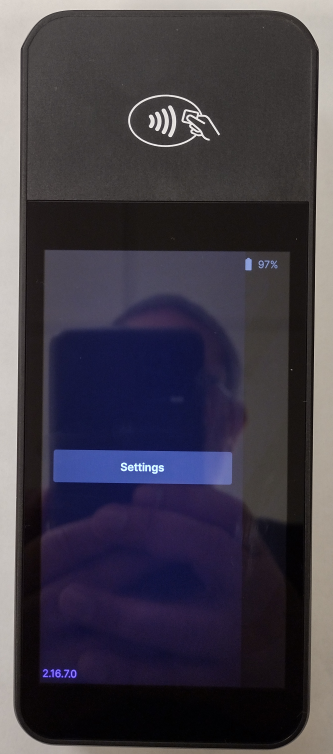

  1. On the touchscreen, swipe from left to right.

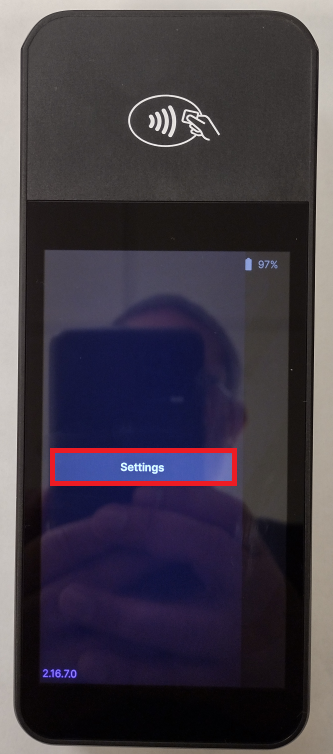

  1. Tap "Settings".

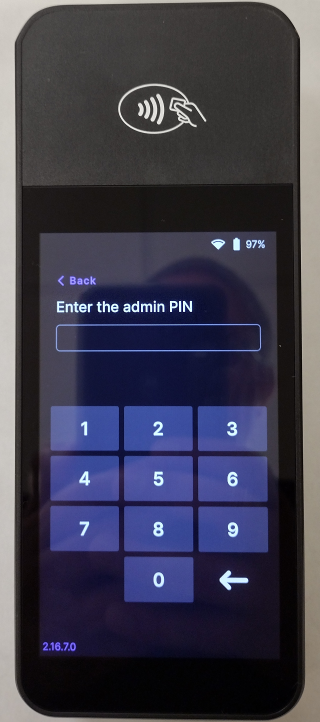

  1. You will now be prompted to enter the admin PIN.  It is "07139".

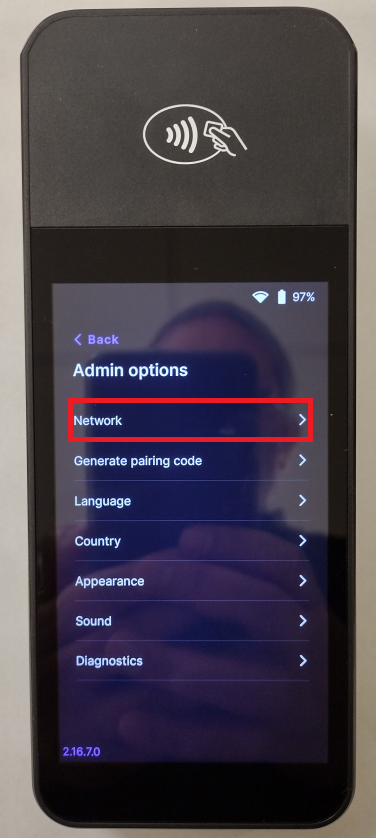

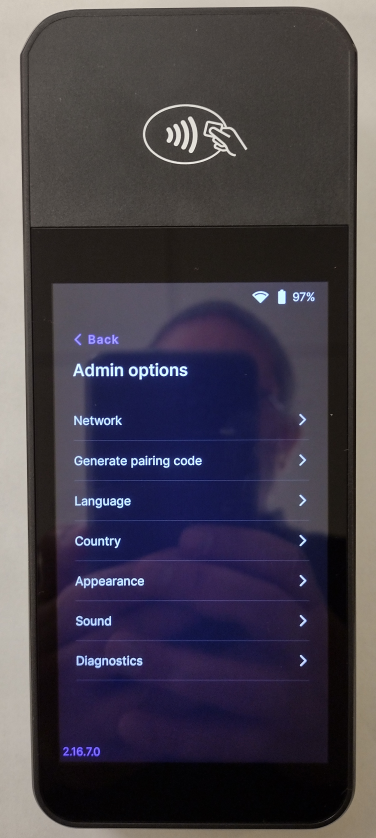

  1. You will be taken to the menu.


  1. Tap "Network".

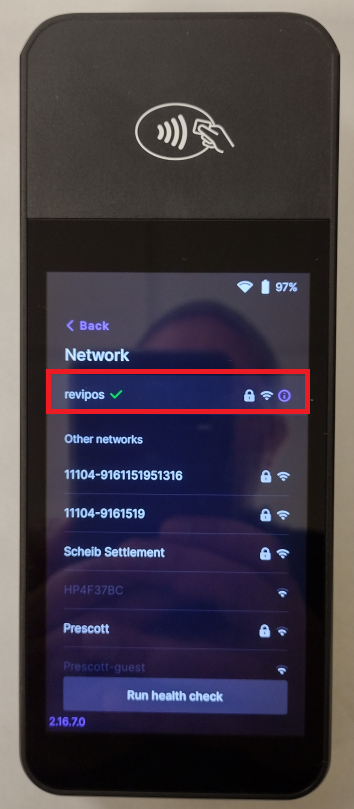

  1. You will see a listing of wireless networks.


  1. Tap the wireless network that the Wise POS E pin pad terminal is connected to.

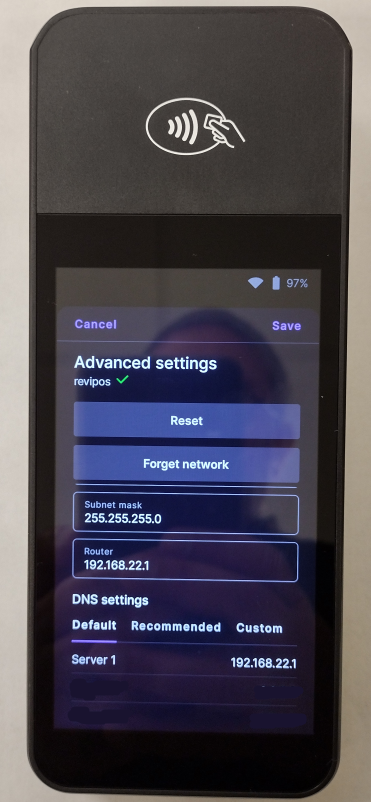

  1. You will now see information about the wireless network that the Wise POS E pin pad terminal is connected to.

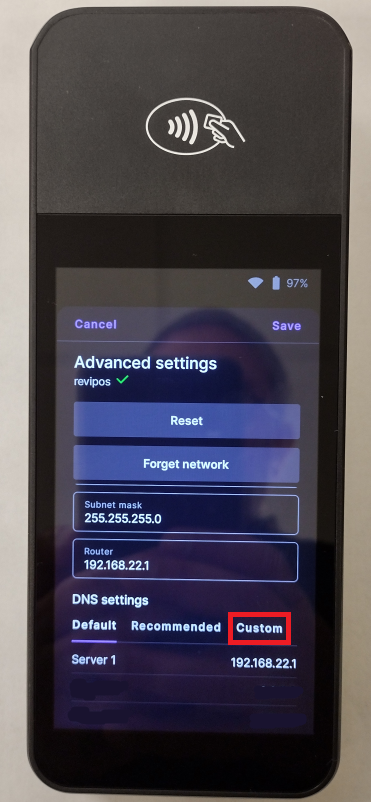

  1. Under the section named "DNS settings", tap "Custom".

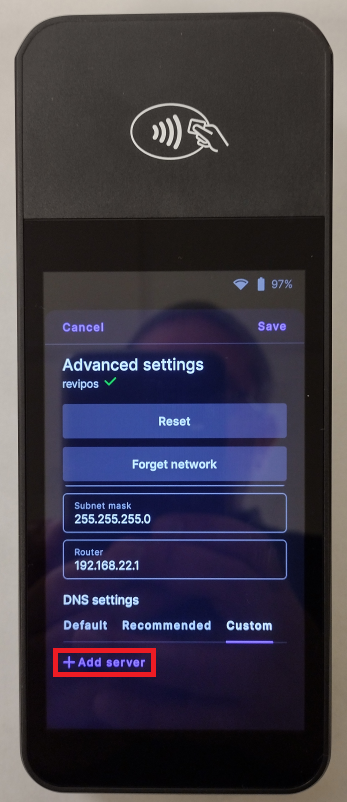

  1. Tap "+ Add server".

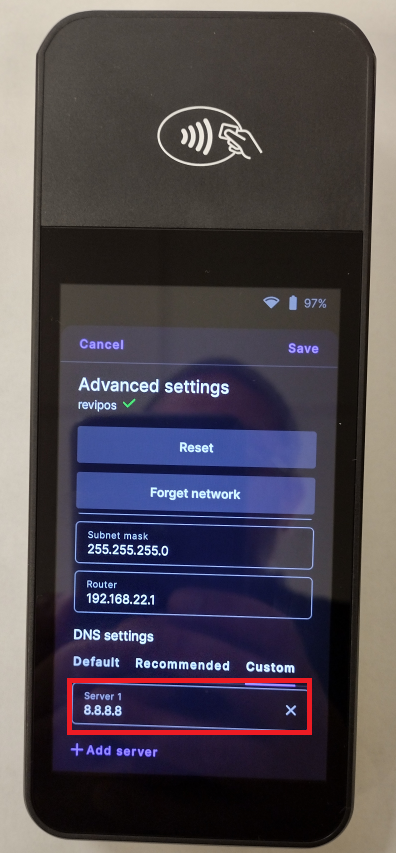

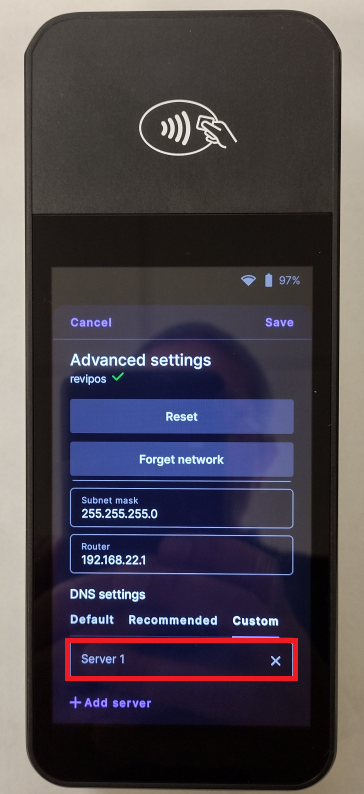

  1. Tap the box named "Server 1".


  1. Enter "8.8.8.8".

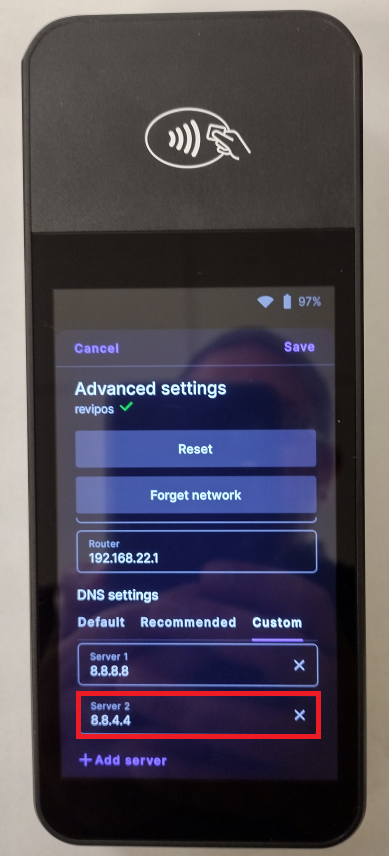

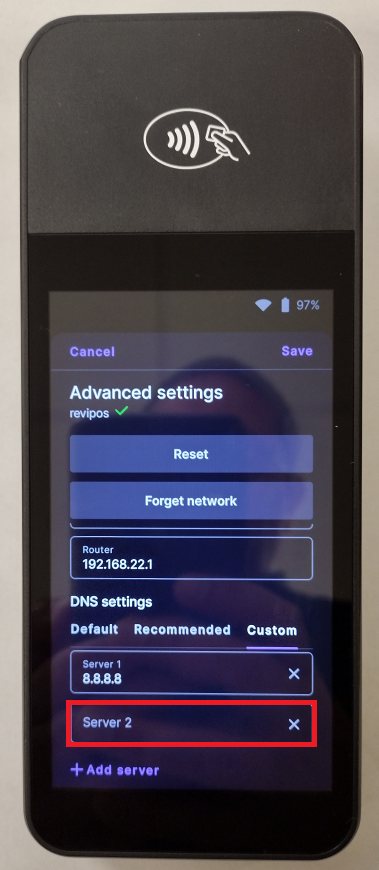

  1. Tap the box named "Server 2".


  1. Enter "8.8.4.4".

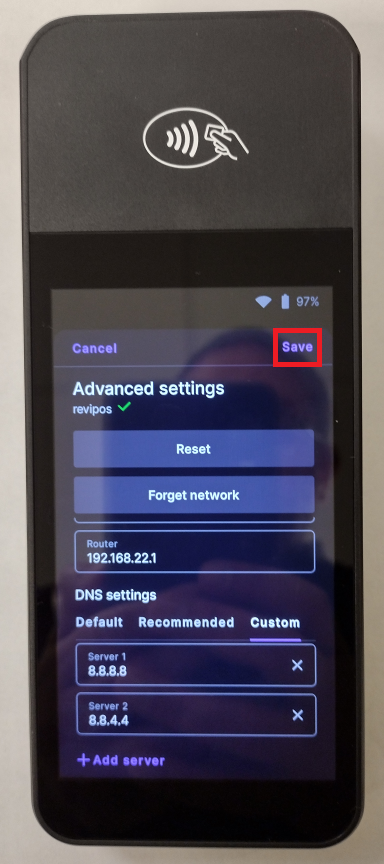

  1. Tap "Save" in the upper right hand corner.

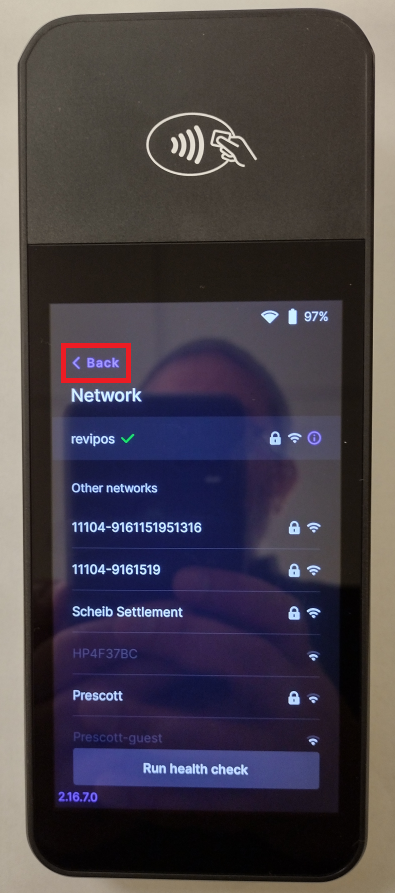

  1. You will be taken back to the "Network" menu.


  1. Tap "Back" in the upper left hand corner.

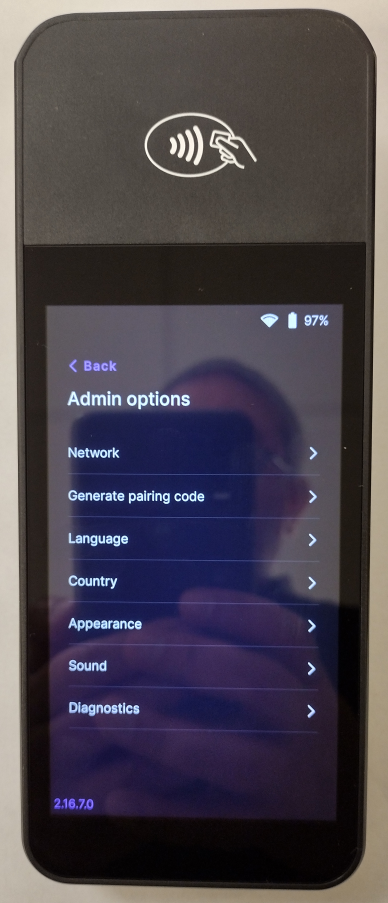

  1. You will be taken to the main menu.

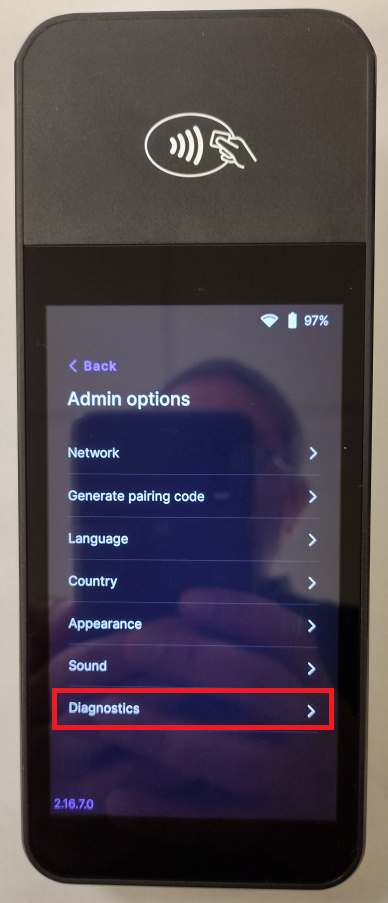

  1. Tap "Diagnostics".

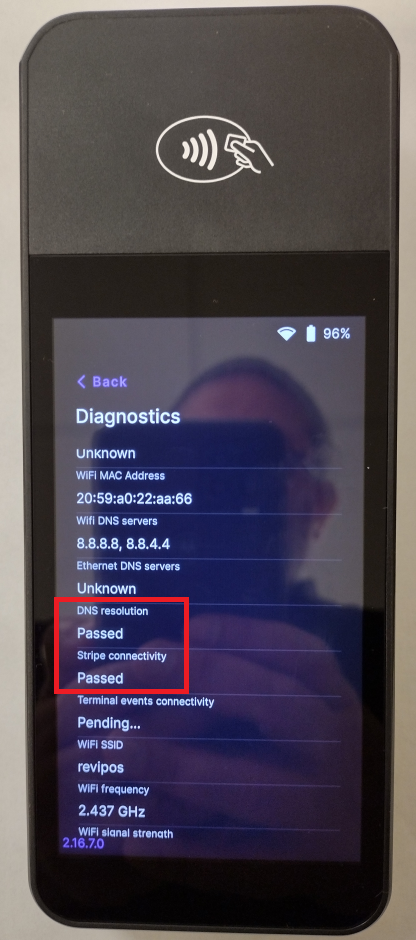

  1. Scroll down until you see "DNS resolution" with a status of "Passed" and "Stripe connectivity" with a status of "Passed".
