Wise POS E Payment Terminal: What do the icons at the top of the display represent?

This article reviews the icons at the top of their display and their representation.

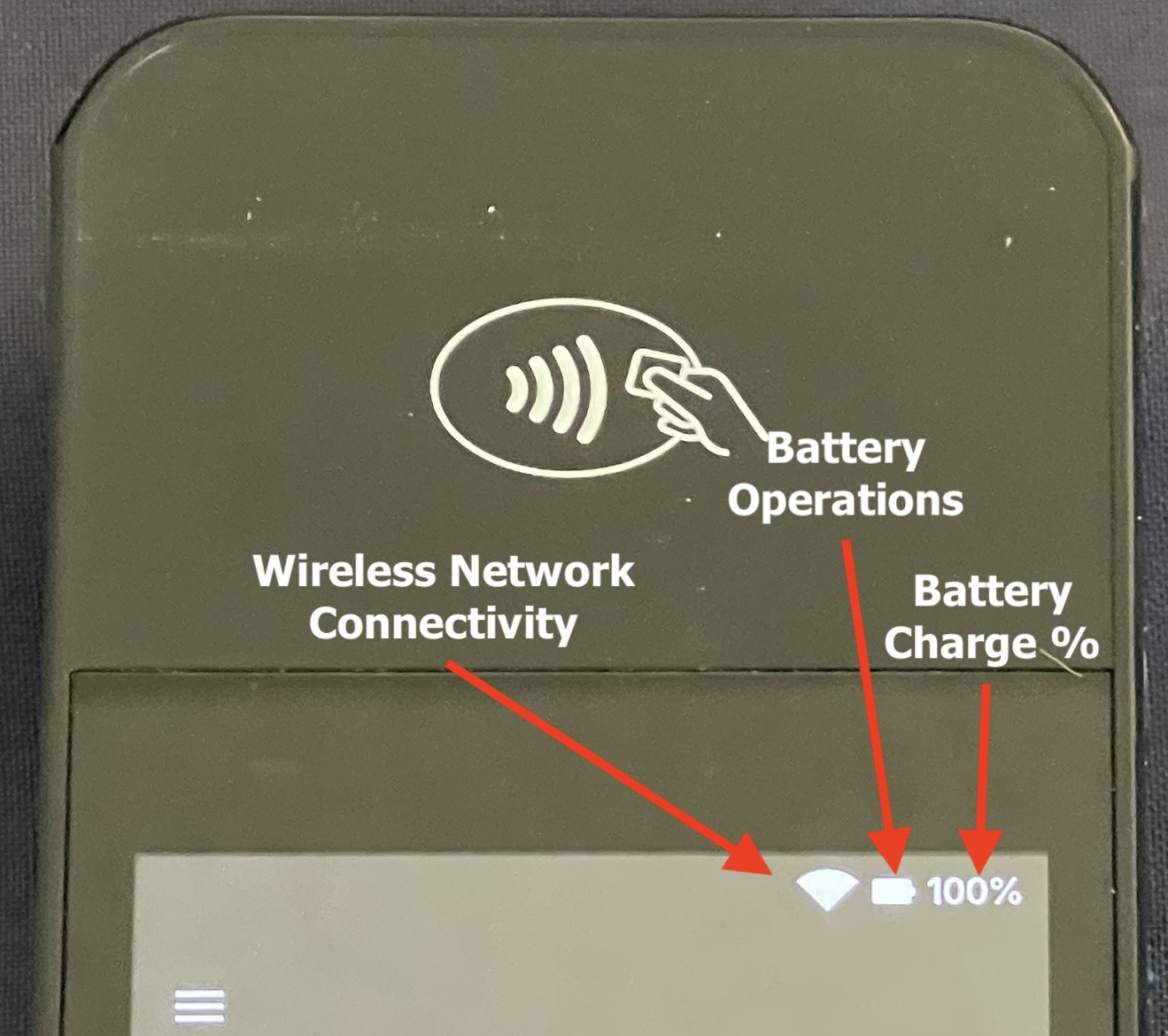

Top of the Payment Terminal while on the idle screen reflects three icons on the right-hand side.

Wireless Network Connectivity - Current network connection being used.  Alternative would be <..> representing Hard Wired Network

Battery Operations - Solid battery represents the terminal is utilizing the battery for power.  A Lightning Bolt thru the battery represents the battery is being charged

Battery Charge % - Capacity of battery that is charged

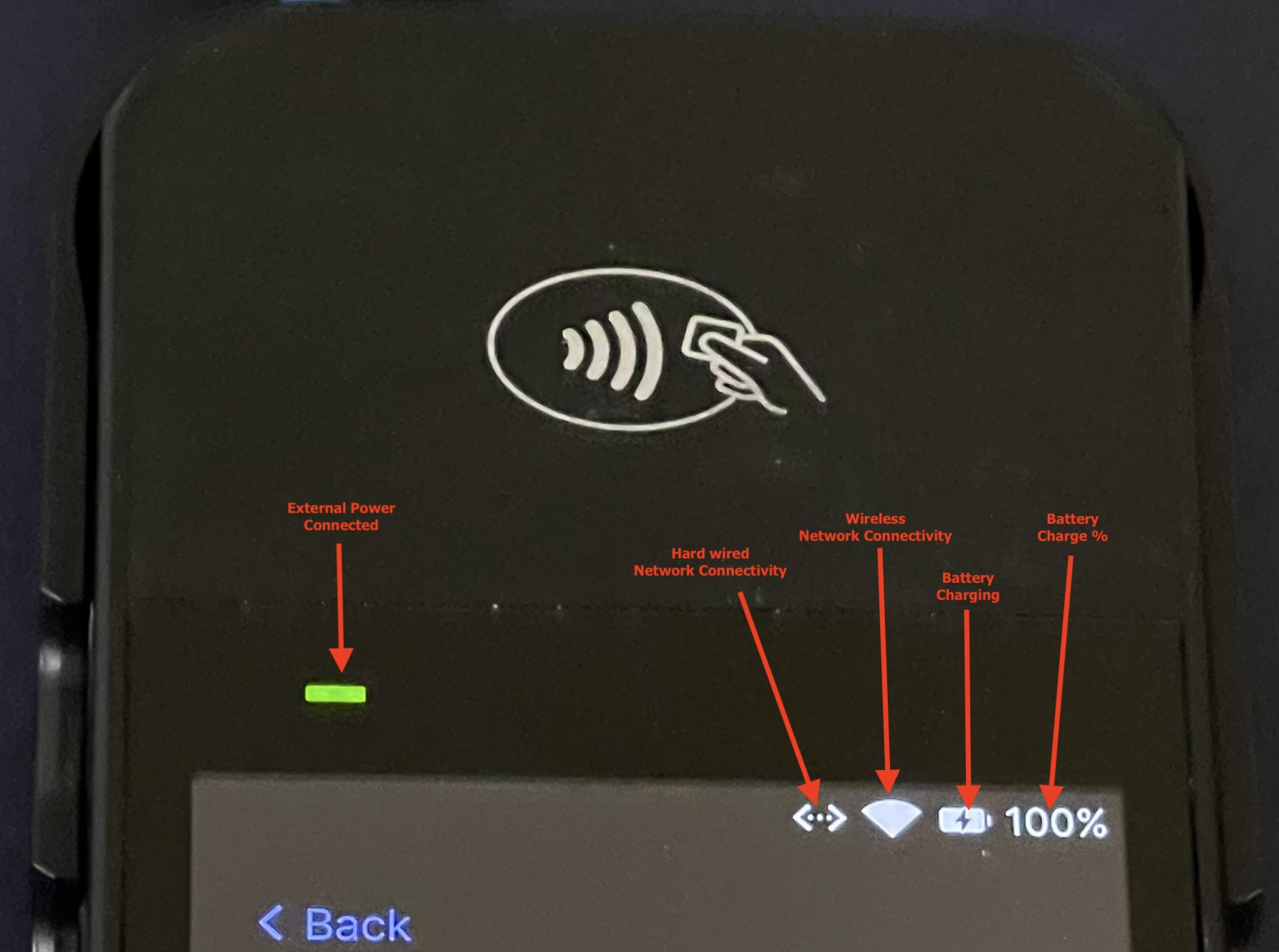

Top of the Payment Terminal while on the Advanced Settings screen could reflect four icons on the right-hand side.

Hard-Wired Network Connectivity - Hard-Wired network connection is present*

Wireless Network Connectivity - Wireless network connection is present*

* Both Hard-Wired and Wireless network connection will only be reflected if the terminal is connected to both at the same time

• If the terminal is in a dock, the Hard-Wired network connection will be the active connection
• If the terminal is NOT in a dock, the Wireless network connection will be the active connection

Battery Operations - Solid battery represents the terminal is utilizing the battery for power.  A Lightning Bolt thru the battery represents the battery is being charged

Battery Charge % - Capacity of battery that is charged

If there are further questions, please contact the iPOS Support Team at (570) 906-8598 option 3, or email helpdesk@individualpos.com.

Updated June 8, 2026
